Order Code: ZXJT-202A- WC
TIG 200A AC/DC Analog Pulse Water Cooled
Discounts available from your local dealer
List Price: £2887.50
![JASIC 202D WC copy.png](https://static.wixstatic.com/media/fc2fb8_e3d37df7212d444b98a7b18aa4517e5c~mv2.png/v1/fill/w_327,h_612,al_c,q_85,usm_0.33_1.00_0.00,enc_auto/JASIC%20202D%20WC%20copy.png)
Ultimate operator control with
unrivalled weld performance

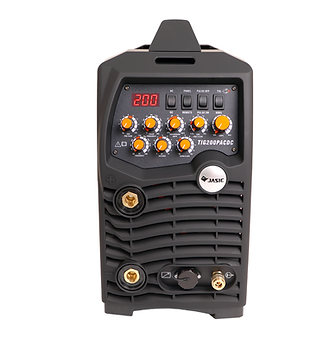

The 200A Pulse AC/DC is a technologically advanced single phase water cooled modular TIG welding system for medium duty production work. The innovative and user friendly analogue control panel ensures full control of the welding parameters.
The excellent technical characteristics of the 200 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
![202a jasic tig.png](https://static.wixstatic.com/media/fc2fb8_438e0a5aeae24523a3cba075cf5b686f~mv2.png/v1/fill/w_336,h_338,al_c,q_85,usm_0.33_1.00_0.00,enc_auto/202a%20jasic%20tig.png)
![Jasic Welding Inverters 5 Year logo.jpg](https://static.wixstatic.com/media/fc2fb8_5f39ff2ddfc2412084b4c21bbe6553e1~mv2.jpg/v1/fill/w_111,h_108,al_c,q_80,usm_0.33_1.00_0.00,enc_auto/5%20year%20logo.jpg)
![Jasic Welding Inverter Quality Standards](https://static.wixstatic.com/media/fc2fb8_1fd3962e92c544ed84b4315b65917c66~mv2.jpg/v1/fill/w_381,h_60,al_c,q_80,usm_0.33_1.00_0.00,enc_auto/fc2fb8_1fd3962e92c544ed84b4315b65917c66~mv2.jpg)
![UKCA_filled.svg.png](https://static.wixstatic.com/media/fc2fb8_c6908bddef654d5a910d395ef1eb5828~mv2.png/v1/fill/w_47,h_47,al_c,q_85,usm_0.33_1.00_0.00,enc_auto/UKCA_filled_svg.png)
![Jasic Welding Inverter Features Icon](https://static.wixstatic.com/media/fc2fb8_5554e2ddc3c14852976abedfec5573a1~mv2.png/v1/fill/w_59,h_60,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/fc2fb8_5554e2ddc3c14852976abedfec5573a1~mv2.png)
Inverter Features
-
TIG Pulse AC/DC with analog control
-
Digital display
-
Peak current control, 2T/4T
-
Pre-post flow time, up/down slope
-
Pulse adjustment
-
Pulse frequency, pulse duty, arc force, cleaning width
-
Remote control interface
-
AC function for aluminium and aluminium alloys
-
DC TIG function for carbon steel,
-
copper and non-ferrous metals
-
Smooth arc and stable welding performance
-
Heavy duty 35/50 dinse sockets
-
VRD Function
-
AVR generator friendly
![Screenshot 2021-06-03 at 14.58.20.png](https://static.wixstatic.com/media/fc2fb8_0a2f45b675e74f0f9d0cda8d3c26c668~mv2.png/v1/fill/w_103,h_86,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Screenshot%202021-06-03%20at%2014_58_20.png)
![Jasic Welding Inverter Data Icon](https://static.wixstatic.com/media/fc2fb8_289ff1ceff434516af34a2bd9a251a2a~mv2.png/v1/fill/w_60,h_60,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/fc2fb8_289ff1ceff434516af34a2bd9a251a2a~mv2.png)
Technical Data
Input Voltage: AC 230V - 50/60 Hz
Ieff(A): TIG 16A
MMA 17A
Input Power (kVA): 6.9
Current Range (A): MMA 10 - 160
TIG 5 - 200
Duty Cycle @ 40°C: MMA 160A @ 30%
TIG 200A @ 25%
No-Load Voltage (V): 65 (VRD - 7V)
Protection/Insulation Class: IP21S/B
Dimensions (L x W x H mm): 940 x 420 x 1130
Weight (Kg): 70
-
Digital Display
-
AC/DC Selection Switch
-
Local/Remote Switch
-
TIG Pulse Switch
-
Welding Process Switch
-
Pre-flow Gas Control Dial
-
AC Frequency Control Dial
-
Pulse Frequency Control Dial
-
AC Balance Control Dial
-
TIG Pulse Background Control Dial
-
Downslope Time Control Dial
-
Post-flow Gas Control Dial
-
Current Control Dial
Sales Leaflet
Operating Manual
Water Cooled TIG Trolley Assembly Instructions
![images-1.png](https://static.wixstatic.com/media/fc2fb8_f5439cf8072c47b289dbd323c57cfa97~mv2.png/v1/fill/w_51,h_29,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/images-1.png)
Product Video
Setup Guide for DC & DC Pulse
![tig symbol.png](https://static.wixstatic.com/media/fc2fb8_695715daaf624cca984c9f003bdf49cc~mv2.png/v1/fill/w_60,h_60,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/tig%20symbol.png)
AC Mode:
Aluminium up to 6.4mm (1/4")
DC Mode:
Steel/Stainless Steel up to 4.8mm (3/16")
![Jasic Welding Inverter Package Icon](https://static.wixstatic.com/media/fc2fb8_d545b8aecfc1454c8317105c607fec74~mv2.png/v1/fill/w_57,h_57,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/fc2fb8_d545b8aecfc1454c8317105c607fec74~mv2.png)

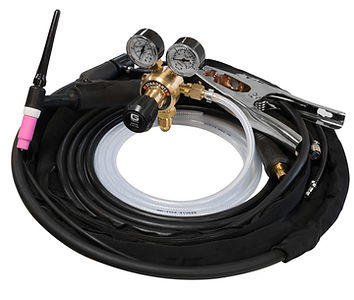

Package Includes
AC/DC TIG welding inverter power source, Trolley, Water Cooler,
TIG welding torch & adaptor, Gas Regulator, Earth return lead,
Operating instructions.
